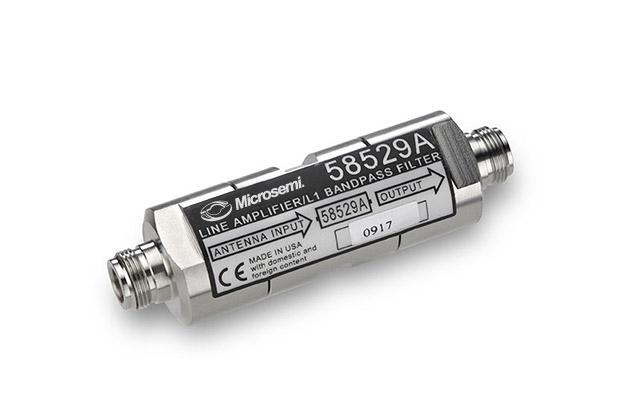

58529A GPS Line Amplifier with L1 Bandpass Filter

Provides Gain to Overcome Cable Loss

The 58529A GPS Line Amplifier with L1 Bandpass Filter provides gain to overcome cable loss in installations where a GPS receiver and antenna must be separated by large distances.

With over 20 dB (typical) of gain, the 58529A increases the maximum cable length from 115 to 240 meters between the 58532A GPS Antenna and a timing receiver. Two amplifiers may be used in series to achieve distances up to 360 meters. An active device, the 58529A accepts power between +4.5 Vdc to +13 Vdc. The unit is designed to pass dc power up to the GPS antenna.

Added Interference Protection

Antennas located in high-signal environments occasionally need interference protection above and beyond the filter provided in the 58532A GPS Antenna. The 58529A includes a narrow bandwidth filter with steep roll-off to minimize interference from nearby transmitters.

Improved Immunity to Lightning

Electromagnetic fields caused by nearby lightning strikes can induce surge voltages in the antenna cable, damaging components in the antenna system. The 58529A has improved immunity to these voltages through built-in diode protection. However, Symmetricom recommends the 58538A and 58539A lightning arrestors for full lightning protection.

Durable and Easy to Install

Symmetricom's third generation GPS antenna line amplifier, the 58529A is even more durable and easier to install than its predecessors. New features include a more rugged package design and a streamlined installation scheme. The 58529A is designed to be compatible with the 58532A GPS Antenna. The 58529A'scylindrical shape allows it to fit inside the mounting mast of the 58532A GPS Antenna for shelter from the environment.

Key Features

• Provides gain to overcome cable losses in installations separated by large distances
• Designed to pass DC power up to the GPS antenna
