9250

Low Profile Military OCXO Designed for Ground Tactical and Airborne Applications

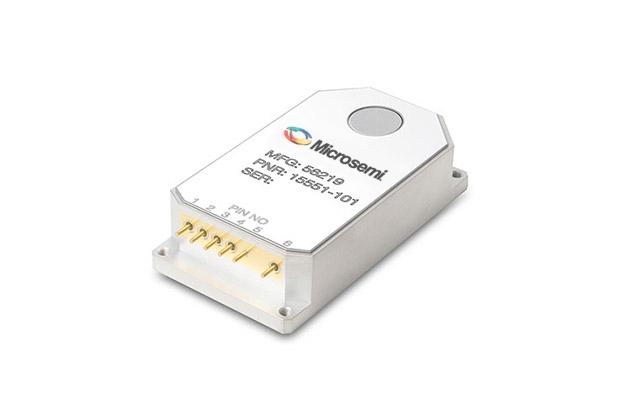

The 9250 is a military OCXO designed for ground tactical and airborne applications where superior phase noise and frequency stability are required.

The 9250 combines excellent frequency stability and low dynamic phase noise in a compact, low profile package. It withstands a wide range of harsh operating environments with minimal performance degradation.

High performance crystal resonátor

The 9250 is based on an ovenized 10 MHz, 3rd-overtone SC-cut crystal resonator enclosed in a hermetically sealed 1.50" x 2.76" x 0.9" package. It achieves less than -100dBc phase noise at 1Hz from the 10MHz carrier.

Compact form factor maximizes space requirements

The small, low profile unit stands less than one inch high, allowing for easy integration into complex subsystems where space is at a premium. All inputs and outputs are accessible via feed-through pins on the side of the chassis.

Key Features

§  10MHz Output

§  <3.0E-10 per day aging

§  <2.0E- 9 per-g Acceleration Sensitivity

§  Low Phase Noise

§  <0.9 inches high

Applications

The 9250 is designed to satisfy a range of applications including:

§  Ground tactical and airborn applications

§  Secure communications and navigation systems

§  Radar applications
