B-WIT 100 Wideband Injection Transformer

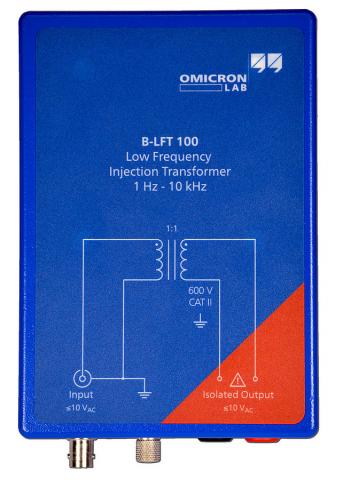

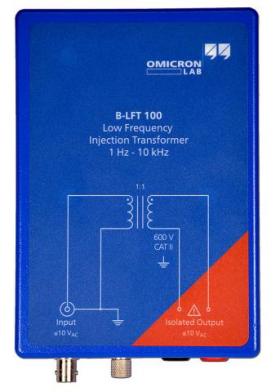

B-LFT 100 Low-Frequency Injection Transformer

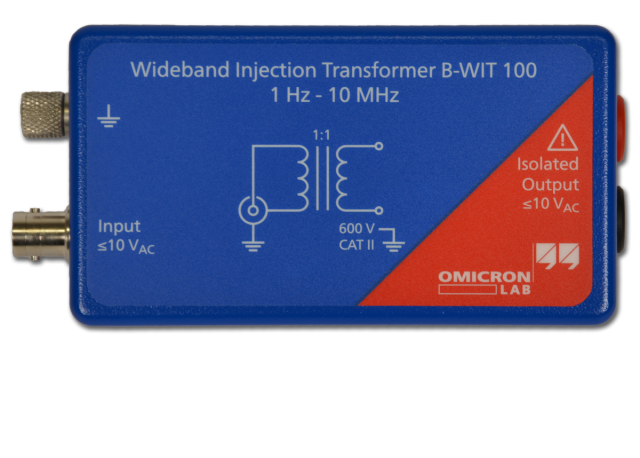

The B-WIT 100: One injection transformer for all applications.

The B-WIT 100 combines a wide frequency range (1Hz - 10 MHz) with a 600V CAT II compliant output. The wide frequency range ensures that the B-WIT 100 can be used for the analysis of very slow control loops ( low loop bandwidth) as well as very fast control loops (high loop bandwidth). The 600V CAT II compliant output ensures that DC/DC converters with an output voltage ranging from a few volts up to mains voltage can be analyzed.

Key features

• Optimized for signal insertion into control loops using low impedances
• Extremely wide frequency range: 1 Hz - 10 MHz (useable frequency range)
• Highest linearity
• Low insertion loss
• Fully 600V CAT II compliant output
• CE compliant, RoHS compliant

Some technical data

• Usable frequency range: 1 Hz - 10 MHz
• 3 dB frequency range : typ. 7 Hz - 5 MHz
• Insertion loss : typ. < 0,5 dB
• Turns ratio: 1:1
• Winding capacity : typ. 110 pF
• Max. input voltage: 4 Vrms
