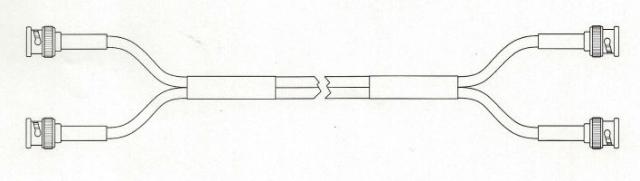

DCOAX - Dual, Low Noise, Coaxial Cable Optimized For Three-Terminal Capacitance Measurements

Very high precision, three-terminal capacitance measurements can be affected by the self-inductance of the test cables, mainly at higher capacitance values. Magnetically induced noise can also reduce the quality of measurements. The cable now offered by Andeen-Hagerling both minimizes these problems and provides a way to standardize the residual self-inductance. High precision calibration measurements can now use a standard one meter length of test cable to minimize and standardize cable induced errors.

Outstanding Features

• Low triboelectric noise
• Minimizes self-inductance at frequencies below 1 MHz
• Minimizes the enclosed area to reduce pickup from magnetic fields
• Rib on one half cable allows easy identification
• Shielding is 100% using foil and copper braid construction
• Center conductor is equivalent to 20 gauge to minimize resistance
• Good flexibility makes it suitable for test leads
• Easily zippable
