10 MHz OCXO-based GPS Disciplined Oscillator

The GPS-1000 is a 10 MHz OCXO-based GPSDO with a small footprint and a host of firmware enhancements that make it ideal for avionics applications.

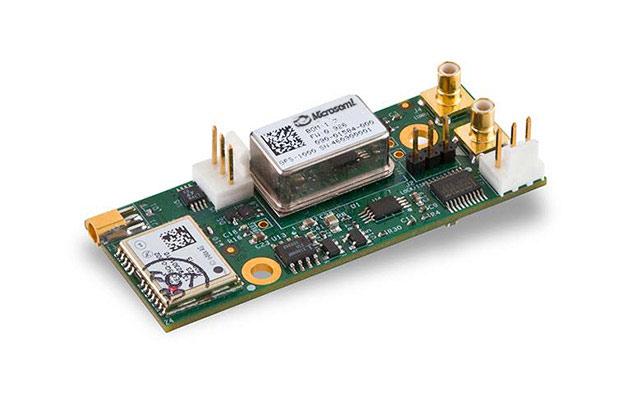

The Symmetricom® GPS-1000 is a 10 MHz OCXO-based GPS Disciplined Oscillator (GPSDO), covering an operating temperature range of 0°C to +60°C. The unit features a high-performance GPS receiver that can track up to 50 GPS signals, down to levels as low as -160 dBm. The receiver is compatible with GPS, WAAS, EGNOS, and MSAS signals, and is Galileo-ready.

Key features

• High-performance GPS Receiver
• Small footprint and low profile: only 1.0" x 2.5" x 0.5"
• Fast warm-up
• Low phase noise
• 1 PPS output accuracy of ±50 ns to UTC RMS (1-sigma), GPS-locked

Applications

• Unmanned Aerial Vehicles (UAV's)
• IED Jammers - fixed, mounted, dismounted
• Radar Systems
• Aircraft Guidance Systems
• Tactical Radios
• Underwater systems using GPS for initialization
