GPS - 2000

10 MHz OCXO-based GPS Disciplined Oscillator

Like the GPS-1000, the GPS-2000 is a 10 MHz OCXO-based GPSDO with a small footprint and firmware enhancements aimed at avionics applications. However, the GPS-2000 goes further, adding additional telemetry features and a daisy- chain redundancy capability for mission- critical applications. The GPS-2000 also has a built-in high-isolation distribution amplifier, enabling it to provide five 10 MHz outputs.

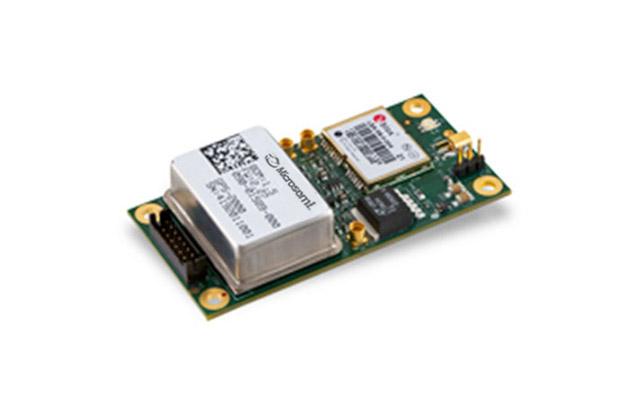

The Symmetricom® GPS-2000 is a 10 MHz Single-Oven OCXO-based GPS Disciplined Oscillator (GPSDO), covering a temperature range of 0°C to +75°C. The unit features a high-performance GPS receiver that can track up to 50 GPS signals, down to levels as low as -160 dBm. The receiver is compatible with GPS, WAAS, EGNOS, and MSAS signals, and is Galileo-ready.

Key Features

• High-performance GPS Receiver
• Small footprint and low profile: only 1.5" x 3" x 0.65"
• Built-in 10 MHz Distribution Amplifier with 3 outputs (>80 dB isolation)
• Low phase noise
• 1 PPS output accuracy of ±50 ns to UTC RMS (1-sigma), GPS-locked

Applications

• Unmanned Aerial Vehicles (UAV's)
• IED jammers - fixed, mounted, dismounted
• Radar systems
• Aircraft guidance systems
• Tactical radios
• Underwater systems using GPS for initialization
