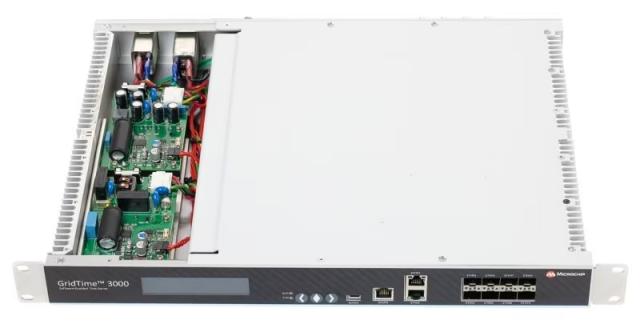

GridTime™ 3000 GNSS Time Server
GridTimeTM 3000 GNSS Time Server
The GridTimeTM 3000 GNSS time server is a software-enabled solution that provides enhanced levels of redundant, secure and resilient timing for power utility substations. It generates precise time and frequency signals to synchronize analog and digital communication systems within the substation.
The GridTime 3000 GNSS time server generates precise time and frequency signals to synchronize analog and digital communication systems within the substation.
Key Features
- Software-configurable license model
- Isolated single- or dual-power supply options
- Swappable high- and low-voltage power supplies
- Independently isolated outputs
- UTC and LST with user-defined DST options
- Hardware-based assurance boot process
- HTTP/S browser-based configuration and management tool
- Compliance to IEEE® 1613-2009 and IEC 61850-3 electrical substation environmental requirement
- Oven-Controlled Crystal Oscillator (OCXO) and rubidium holdover options
- Parallel redundancy protocol support
- Support for a wide range of industry profiles for IEEE 1588 Precision Time Protocol (PTP)
- Up to 10 independently configured Ethernet ports
- Class B boundary clock
- GPS/GLONASS/Galileo and BeiDou availability
- Fanless passive cooling
- Simple Network Management Protocol (SNMP) management and monitoring
- External authentication using Remote Authentication Dial-In User Service (RADIUS) and Lightweight Directory Access Protocol (LDAP)
