M352XA Series - 6 1/2 Digits 4.3"TRMS MultimeterM352XA Series Overview

6 1/2 Digit 4.3" digital multimeters (series includes M3520A, M3521A & M3522A) enable you to run quickly with an easy-to-use GUI, temperature measurement capability, quick function setup, and a wide range of measurement options. TRMS offers a full range of measurement capabilities with higher levels of accuracy, speed, and resolution. For instance, the M3522A provides the following impressive features:

• Fast Power-Up

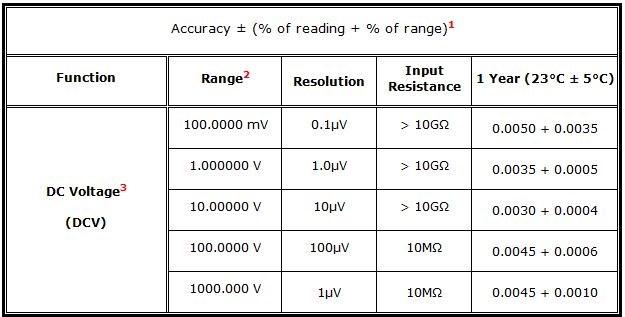

• 3-Channel DCV Measurement
• DC CTR Measurement
• Large 4.3" Display
• Real-Time Chart & Histogram

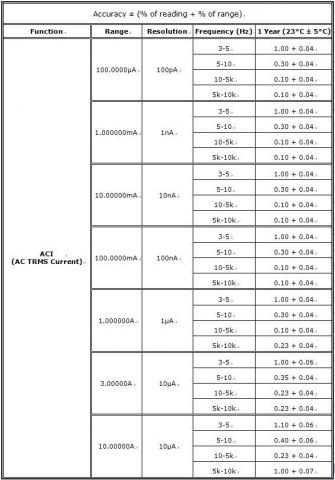

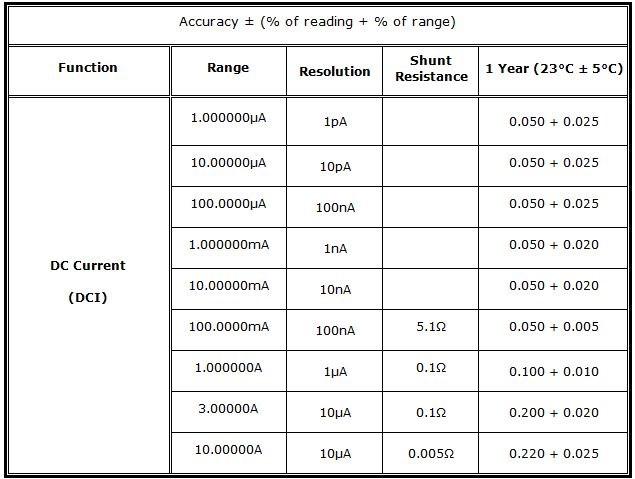

• DC & AC Current Up to 10A

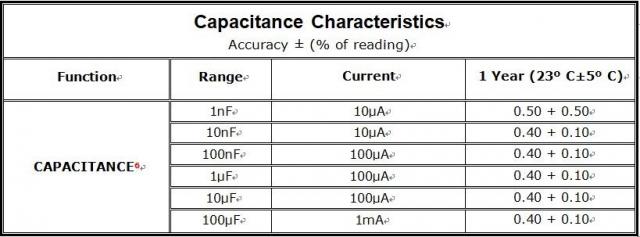

• Capacitance Measurement Up to 100μF
• Thermocouple Measurement
• Sensitive Multi-Purpose Knob
• Replaceable Current Fuse
• Fast Measurement Setup
• Dual Display Measurement
• USB Host Datalogging (Time & Delay Setup) & FW Upgrade

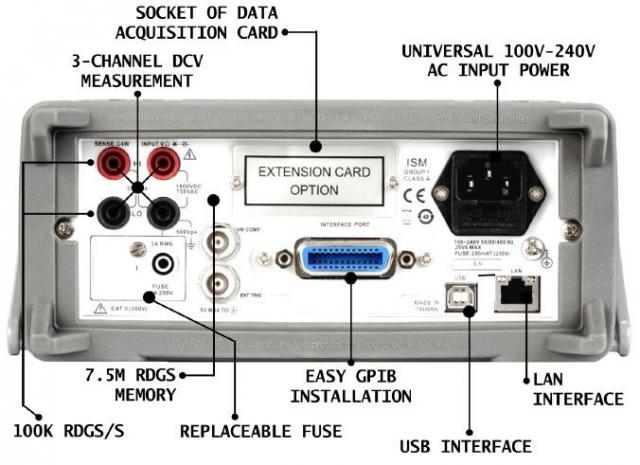

• Rear Panel Measurement
• Fast Reading Rate: 100K Readings/s
• 7.5 Mega-Reading Storage Memory
• Compatible SCPI Commands
• True RMS, More Accurate
• Multi-Language Operation Selection
• Universal 100V-240V AC Input Power
• Standard USB & LAN Control Interfaces
• Optional GPIB/RS-232 Interface (Easy External Interface Installation)
• Supportive Multi-Point Data AcquisitionNEW 6 1/2 DIGIT DMM

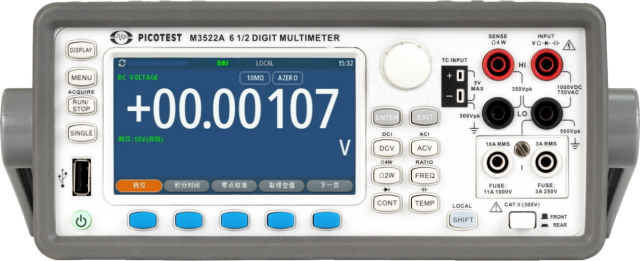

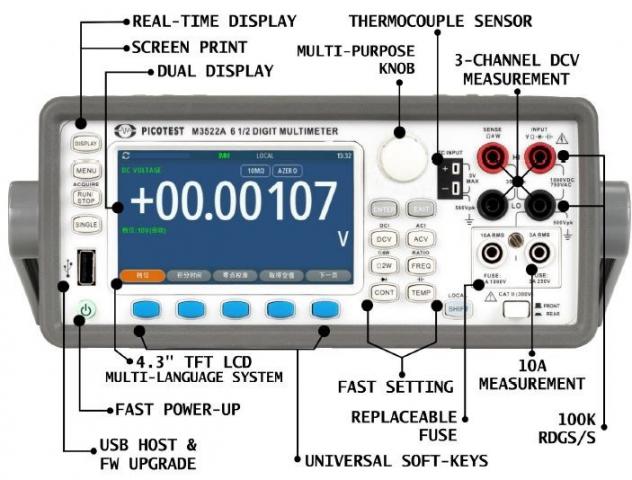

M3522A is a versatile 6 1/2 digit DMM with several improvements at an affordable price. This unit is equipped with a 3-Channel DCV and thermocouple measurement capability. A large 4.3" display, fast power-up, dual displays, screen print, increased memory storage up to 7.5M readings, 10A current limit, fast & ergonomic measurement setting via an updated multi-purpose knob, LAN & USB control interfaces, fast measurement at 100K readings/s, multi-language system, and easy GPIB/RS-232 installation are all included. Firmware upgrades via the USB host are easy.

FAST POWER-UP

The M352XA series features a fast, 2-second power-up. This means you can start measuring immediately, unlike typical DMMs which take 30 seconds or more to power up.

3-Channel DCV Measurement

(incl. Optocoupler & DC CTR TEST)

Users can simultaneously measure three DCV sources. The Input HI, Sense HI, and Sense LO can resolve 1000V, 12V, and 12V respectively. Their grounds must be connected to Input LO. Then you can set the display to Multi-Channel through the soft-keys. For Optocoupler & DC CTR measurement, please download the related app note on the Picotest website www.picotest.com.tw or contact your local distributor for more details.

4.3" DISPLAY

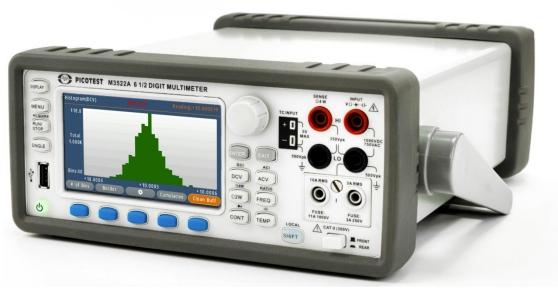

The display not only has large, easy-to-read numbers, but can be changed to the dual display, 3-channel DCV modes, or switched to real-time display in a chart or a histogram style. The multi-language system supports for English, Russian, Japanese, or simple/traditional Chinese. A screen print can be captured and saved to external USB drive, plugged into the front panel USB connector after pressing the "DISPLAY" button for two seconds.

DUAL DISPLAY FOR DUAL MEASUREMENT

This function allows you to measure and display two signals simultaneously. Further operational details can be found in the user's manual.

MULTI-PURPOSE KNOB

With this knob, users can accurately select various settings and add numbers, and quickly press to confirm the setting. With this feature, you get your test setup in order easily and quickly.

TEMPERATURE TEST

The M3522A supports three kinds of temperature measurement:

(1) RTD: PT100, D100, F100, PT385, PT3916, SPRTD, and RTD_USER

(2) Thermistor: 2252Ω, 5KΩ, 10KΩ, and NTC_USER

(3) Thermocouple: B, C, E, J, K, N, R, S, and T

USB SLOT

A USB slot is available to copy data from the memory to a storage drive. Screen prints also can be saved. Firmware updates can also be performed through this USB slot. Please note that the drive format is limited to FAT 32.

READINGS & MEMORY

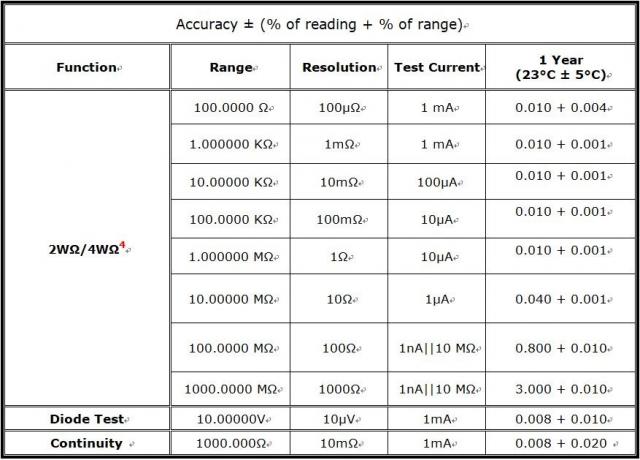

The regarding rates and the memory storage of the M352XA series are superior to competitive models, especially the M3522A.

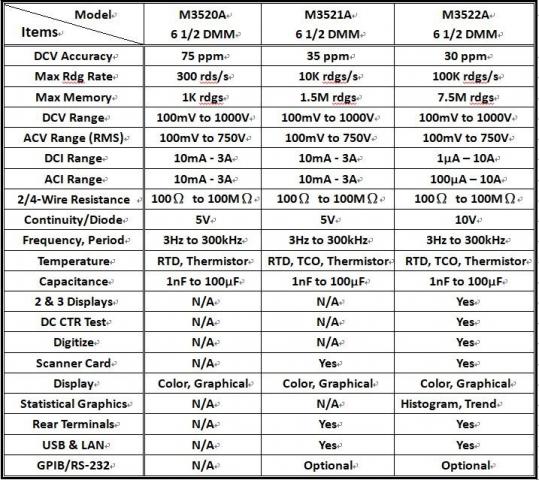

(1) M3520A: Rate in 300 readings/s, memory with 1K readings

(2) M3521A: Rate in 10K readings/s, memory with 1.5M readings

(3) M3522A: Rate in 100K readings/s, memory with 7.5M

DATA ACQUISITION

Setting up a start time and delay for DATALOGGING is easy to do with the M3521A/M3522A. You are also allowed to acquire data from diversified sources using one of the optional cards below.

(1) M3500-opt01: 10-Channel Universal Scanner Card

(2) M3500-opt09: 20-Channel Universal Scanner Card

(3) M3500-opt12: 10-Channel Thermocouple Scanner Card

10A MEASUREMENT

The M3522A can measure up to 10A through the front panel. The fuse replacement (with the same specification) is simple. The warranty covers damages via authorized repair only.

QUICK FUNCTION SETTING

It's easy for you to setup M352XA series through the MENU operation. Pressing the function button for two seconds enters the measurement menu.

UNIVERSAL AC POWER INPUT

The M352XA series uses a switching adapter. This not only reduces the DMM weight, but also allows you to use 100V - 240V AC power inputs. You do not have to change the voltage selection manually.

DIVERSIFIED COMMUNICATION

The M3521A/M3522A is equipped with USB & LAN interfaces. You can also purchase a GPIB/RS-232 card. However, the above interfaces are not available on the M3520A.

STANDARD CONTENTS:

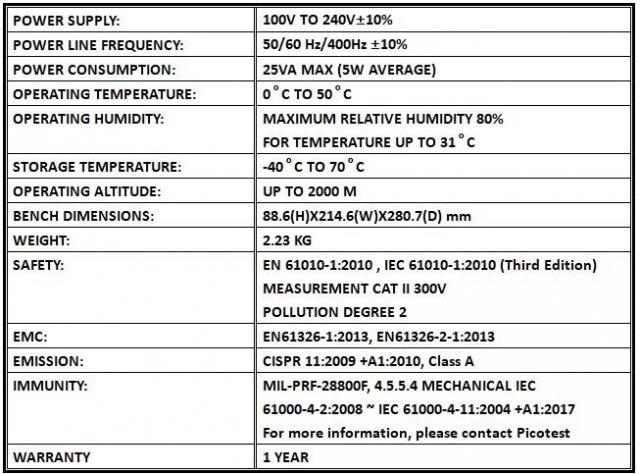

Shipping Size/Weight: 40x31x20cm/5Kgs,

Contents Included:

M352XA 6 1/2 DMM x 1 pcs
Test Leads x 1 set
USB Cable x 1 pcs (N/A for M3520A)
Power Cord x 1 pcs
Spare Power Fuse x 1 pcs
CD x 1 pcs
Certificate of Calibration x 1 pcs
OPTIONAL ACCESSORIES:

The optional accessories are listed at the bottom right. Buyers can purchase based on specific needs.

Please note that the M3521A and M3522A units are equipped with USB & LAN interfaces and support GPIB/RS-232 options. These interfaces are not available on the M3520A.

THE STANDARD CONTENTS AND THE OPTIONAL ACCESSORIES ARE SUBJECT TO CHANGE WITHOUT NOTICE.

M3500-opt01 10CH Scanner Card
M3500-opt04 GPIB Card
M3500-opt06 RS-232 Card
M3500-opt07 Kelvin Probe
M3500-opt08 4-Wire Needle Probe
M3500-opt09 20CH Scanner Card
M3500-opt10 Shorting Plug
M3500-opt11 K-Type Thermocouple Cable
M3500-opt12 10CH Thermocouple Scanner Card
