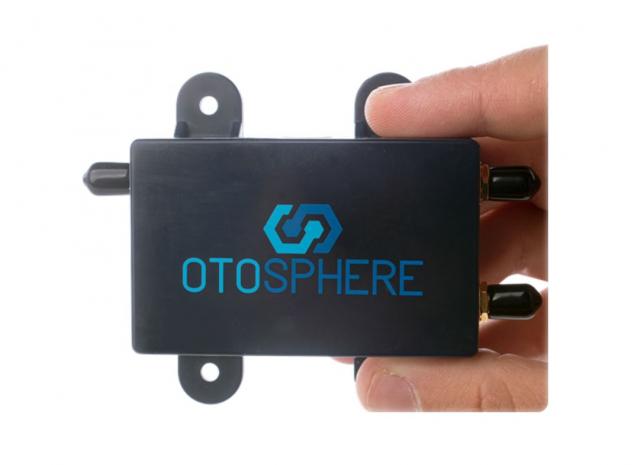

OtoSphere™
OtoSphereTM
- Industry's only commercial GNSS protection solution
- The innovative device is a small, add-on module to any GNSS based system that protects it from GNSS jamming attacks.
- OtoSphereTM ensures continuity of autonomous navigation and timing signals.
- OtoSphereTM enables normal operation during jamming conditions.
- No other solution offers such protection and is as small, light, affordable, and easy to install. OtoSphereTM is unregulated by export control
Features
- Proprietary Interference Filtering Algorithm
- Small form factor:74 x 47 x 25 mm, 150 g
- Minimal power consumption: < 1 W (nominal)
- IP67 waterproof rating
- Automotive temperature grade compliant
- Protected frequency: GPS L1 (C/A Code)
- Passthrough frequencies: GPS L5 & Glonass G1 BeiDou Optional)
- Latency: 100ns ±15ns (fixed)
- Insertion loss: 6.5dB ±2dB
