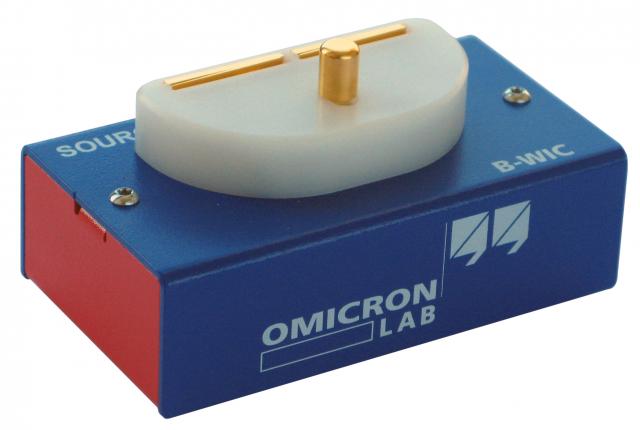

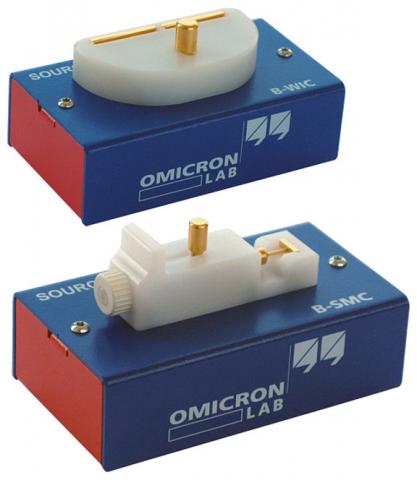

In combination with the vector network analyzer Bode 100 the impedance adapters B-WIC and B-SMC are the perfect choice for impedance measurements of all common passive electronic components. The B-WIC was especially designed for getting a better grip on wired components. The B-SMC is allows quick and secure contacting of even smallest SMD parts.

Key features

• Optimized for RLC-Q measurements of all common passive electronic components
• Measurement of complex impedances in the frequency range from 1 Hz - 40 MHz
• Fast DUT exchange
• CE compliant, RoHS compliant

Connectors

• Signal Input: BNC socket (outer conductor connected to the housing)
• Signal Output: BNC socket (outer conductor connected to the housing)
• DUT: gold plated contacts with spring mechanics for an ensured electric connection
